13ZEHN

Shimano Deore XT 11-speed / Bosch Performance Line CX / 625Wh / Disc

Trekking E-Bikes & Pedelecs of the e-bike manufaktur:

The upscale trekking class

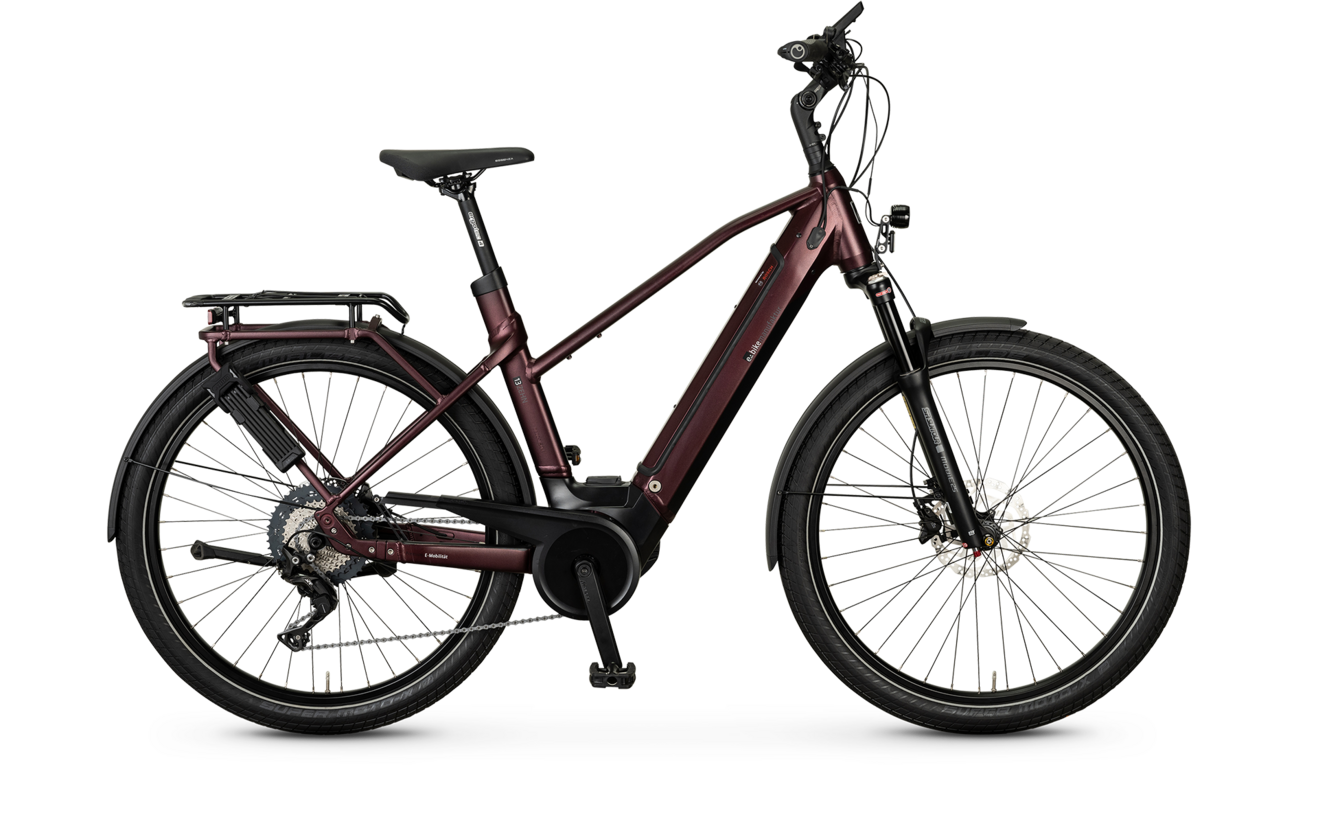

The e-bike 13ZEHN e-powered by BOSCH, available in three frame shapes, is our new trekking model of the "upper middle class". It captivates with its fully integrated frame design as well as with its sporty functionality and overall high-quality equipment. The 13ZEHN feels at home in an urban environment as well as on unpaved roads.

You will be supported on your tours by the high-end drive system of the BOSCH Performance Line CX with 625 Wh battery and Intuvia display. A reliable and robust Shimano Deore XT 11-gear shift and Schwalbe Super Moto-X tyres make for a sporty ride.

Specs

Frame size: Diamant 27,5": 50, 55, 60 cm
Trapez 27,5": 47, 50, 55 cm
Drive Unit: Bosch Performance Line CX, Gen. 4, 36 V Mid-engine, 250 Watt
Display: Nyon, 3,2 inch touch-colour display with remote
Akku: Bosch Frame battery fully integrated, 625 Wh, 36 Volt, 16,7 Ah, Down tube
max load: 140 kg
Frame: Aluminum 6061, Bosch-Interface
Headset: Acros AZX-212, tapered
Fork: Suntour Mobie25 Coil, 100 mm travel with lockout-function,
Rear derailleur: Shimano Deore XT RD-M8000, 11-speed, Shadow Plus
Front derailleur: N.V.
Brake: Shimano Deore BR-MT410 (front 180 mm / rear 180 mm) Disc brake
Headlight: Supernova Mini 2 Pro, with High beam, 160 / 100 LUX including standinglight
Rear light: Busch & Müller Shine Evo LED, integrated in the carrier, including standinglight
luggage carrier: integrated in the frame, with Racktime System, with spring flap
Saddle: Selle Royal Essenza
Seat pillar: Humpert Ergotec Atar, patent, 31,6 mm, 300 mm
Pedal: Marwi SP-823
Stand: Pletscher Comp Flex, rear kickstand
Chain guard: SKS Chainbow_E
Fender: Alumee, aluminum
Weight: 29,2 kg
Handlebar stem: Humpert Ergotec Octopus 50, angle adjustable
Handlebar: Humpert Ergotec Ergobar, 630 mm
Handle: Ergon GP1, with clamp
gearshift lever: Shimano Deore SL-M5100, I-Spec EV, 11-speed
Break lever: Shimano Deore BL-M4100
Tyres: Schwalbe Super Moto-X, 62-584, reflex

Show all specs + Show less specs Product data sheet
