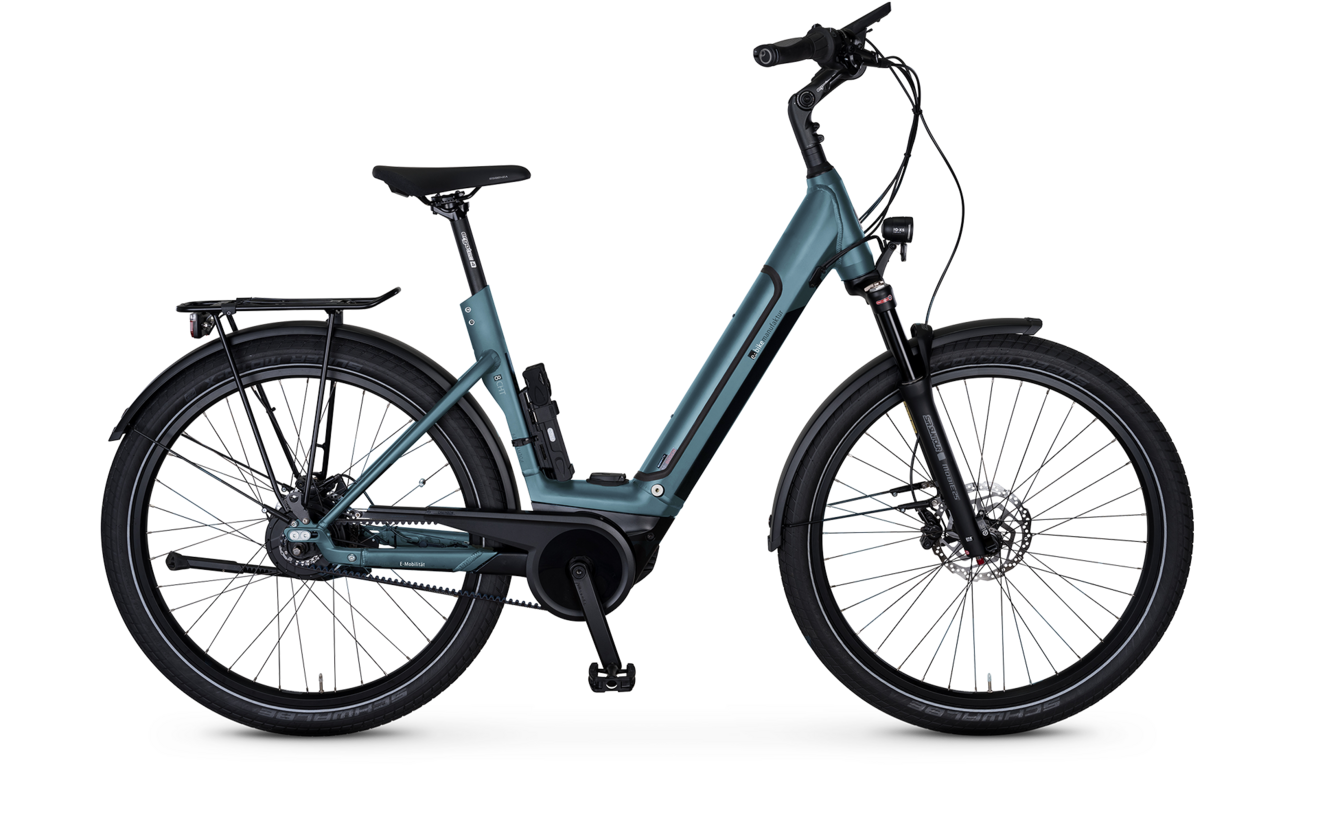

8CHT Wave
8CHT Wave Enviolo TR / Bosch Performance Line CX / 625Wh / Disc / Gates
  • Wave 27,5" / 50 cm
    27,5" / 55 cm
Colour:
green grey matt
Find a dealer » Compare »

8CHT Wave

Enviolo TR / Bosch Performance Line CX / 625Wh / Disc / Gates

City E-Bikes & Pedelecs of the e-bike manufaktur:

Highlight model of the City e-bikes.

The 8CHT is the highlight model of our City series, but also offers an incredible amount of fun off the beaten track. Optimum pedalling support is provided by the 4th generation of the drive system of the BOSCH Performance Line CX with 625 Wh battery and the small but excellent KIOX display. Shimano 180mm disc brakes ensure safe braking – even at high speeds.



In addition, the 8CHT shines with its low-maintenance Gates belt drive; combined with the trekking hub Enviolo TR in this model. The gear hub is the successor to the legendary Nuvinci N380 gear system. Simple and safe: thanks to the infinitely variable gears, every ride on the 8CHT Enviolo is an absolute pleasure. All moving parts are encapsulated and thus perfectly protected and maintenance-free.



What else? You can look forward to comfortable premium class e-bike equipment: Suntour suspension fork, integrated Racktime System luggage rack, Busch & Müller lighting system with parking light, Humpert handlebar and stem, Ergon GP-1 grips and the fast Schwalbe Super Moto-X tyres.



The City e-bike is also available in another version; discover the 8CHT with the robust Rohloff hub gear.

Specs

Frame size
Wave 27,5": 50, 55 cm
Drive Unit
Bosch Performance Line CX, Gen. 4, 36 V mid-mounted motor, 250 Watt
Display
Nyon, 3,2 inch touch-colour-display mit remote
Akku
Bosch frame battery fully integrated, 625 Wh, 36 Volt, 16,7 Ah, downtube
max load
140 kg
Frame
Aluminum 6061, Bosch-Interface
Headset
Acros AZX-212 R5
Fork
Suntour Mobie25 Air, 100 mm travel with lockout,
Rear derailleur
Enviolo TR CVP, stepless, freewheel
Front derailleur
N.V.
Brake
Shimano Deore BR-M6000 (front 180 mm / rear 180 mm) disc break
Headlight
Busch & Müller Lumotec IQ-XS-E, 70 LUX including standinglight
Rear light
Herrmans H-Trace, including standinglight
luggage carrier
Racktime Stand-it, IMM-system, with spring clamp
Saddle
Selle Royal Essenza
Seat pillar
Humpert Ergotec Atar, patent, 30,9 mm, 300 mm
Pedal
Marwi SP-823
Stand
Pletscher Comp Flex, rear kickstand
Chain guard
SKS Chainbow_E
Fender
SKS, plastic
Weight
29,40 kg
Handlebar stem
Humpert Ergotec Octopus 50, angle adjustable
Handlebar
Humpert Ergotec City Cruiser, 635 mm
Handle
Ergon GP1, with clamp
gearshift lever
Enviolo CT, twist grip
Break lever
Shimano Deore BL-T6000
Tyres
Schwalbe Super Moto-X, 62-584, reflex
Show all specs + Show less specs Product data sheet
