FR8

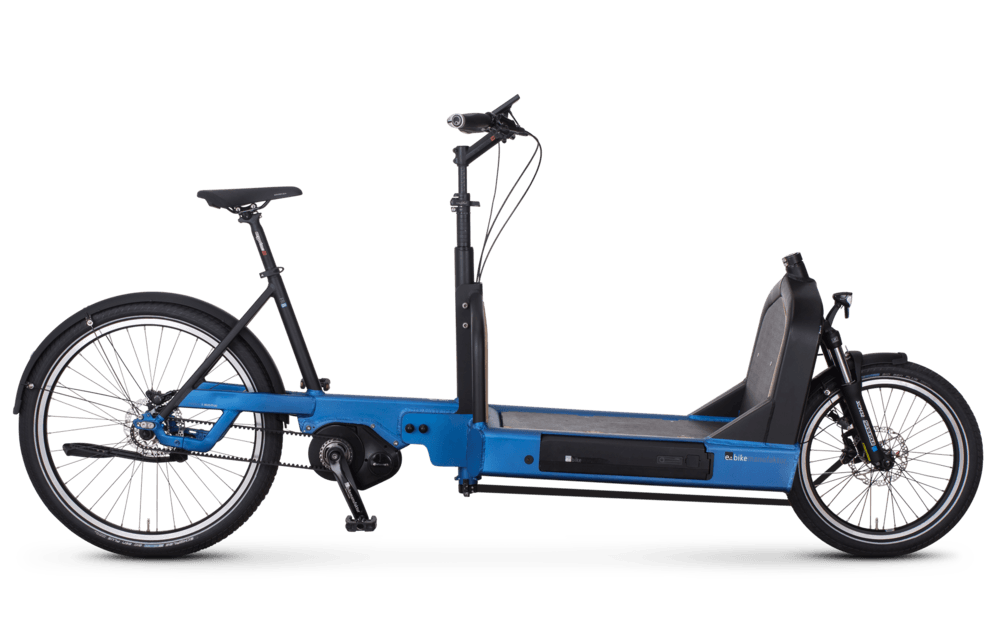

Model FR8

Cargo E-Bikes & Pedelecs of the e-bike manufaktur:

FR8 e-cargo bikes - simply move more.


Increasing traffic density, parking problems in the city, high fuel costs or the desire for sustainable transport concepts - there are many good reasons for using an e-cargo bike from e-bike manufaktur.

If you want to move more in every respect, you will be on the safe side with our two FR8 cargo models. Because no matter what you have in mind - our e-cargo bikes will transport your cargo reliably to its destination - in the city as well as on a bigger trip.

The FR8 models offer a comfortable, upright seating position that allows even longer distances to be comfortably managed. The highlight of the high-quality complete equipment is the automatic 48 V Revolution eBike System from Continental. Whisper quiet, the innovative 2-in1 motor always gives you support just as you need it. Heavy shopping or big luggage? No problem. With a total permissible weight of up to 240 kg, simply charge, drive away and be surprised by the powerful dynamics and problem-free handling of the FR8. For increased anti-theft protection, the FR8 is also available with our anti-theft Connect - our clever GPS-based security system that lets you see exactly where your e-bike is at all times.

Also with Connect!

For added anti-theft security, the e-bike is also available with our Connect theft deterrent - our clever GPS-based security system that lets you see exactly where your e-bike is at all times.

Frame size

Compare »
Frame size Unisex 26/20": 48 cm
Drive Unit Continental Revolution, 48 V Mittelmotor, 250 Watt
Display Continental Display incl. Bluetooth
Akku Continental Rahmenakku vollintegriert, 600 Wh, 48 Volt, 12.5 Ah,
max load 200 kg
Frame Aluminium 6061, cargo piece , Continental-Interface
Headset Ritchey Comp Logic V2
Fork Suntour Federgabel, XCM32
Rear derailleur ---
Bremse Shimano Deore (180/160 mm) Scheibenbremse
Headlight Busch&Müller Lumotec IQ Eyc, 50 LUX mit Standlicht
Rear light Busch&Müller LED integriert im Schutzblech, mit Standlicht
Saddle Selle Royal Essenza
Seat pillar Humpert Ergotec Skalar patent, Aluminium, 27.2 mm, 400 mm
Pedal VP-617
Stand E-BM Mittelständer/Hinterbauständer Pletscher Comp Flex
Chain guard Horn Catena 14e
Fender SKS, Kunststoff
Wight kg
Handlebar stem Humpert High Piranha, Speedlifter Classic
Handlebar Humpert Ladytown, Aluminium, 30°, 600 mm
Handle Ergon GP1
gearshift lever Continental Revolution
Break lever Shimano Deore
Tyres Schwalbe v: Big Ben Plus 55-406 / h: Big Ben Plus 55-559, reflex
Produktdatenblatt (PDF)
Gates Riemen – E-Bike Manufaktur

GATES BELT DRIVES

We have fitted some of our e-bikes with Gates' tried-and-trusted belt drive. As a result, complex lubrication and cleaning of chain and gears is now a thing of the past. This carbon-reinforced alternative to the chain is robust and requires little maintenance. In addition, the lightweight system has an impressively long service life. The lock washers also benefit from this solution: they are placed under less strain than with a chain drive.

Display – E-Bike Manufaktur

Display - everything in view

Lightweight and compact displays combine perfect legibility with ergonomic and intuitive operation. In addition to the display for the support level or charge status of the battery, the display offers numerous functions of a bicycle computer as well as a USB and Bluetooth interface. The clever automatic lighting mode is controlled by an integrated light sensor.

Ausfallende – e-bike manufaktur

DROPOUTS WITH SOPHISTICATED FUNCTION AND HARMONIOUS APPEARANCE

The innovative dropout of our e-bikes offers an integrated mounting for a rear stand. In this way, the support can be installed quickly and easily. In addition, the multi-function drop-out end is equipped with an opening for the gate belt. This means it can be changed in no time at all. Thanks to its tidy appearance, the drop-out is a perfect match for the frame design of the e-bike manufacturer.
