19ZEHN
19ZEHN
  • Diamant 28" / 50 cm
    28" / 55 cm
    28" / 60 cm
Colour:
olive matt
Find a dealer Compare

Expedition E-Bikes & Pedelecs of the e-bike manufaktur:

Maximum travel and everyday comfort.

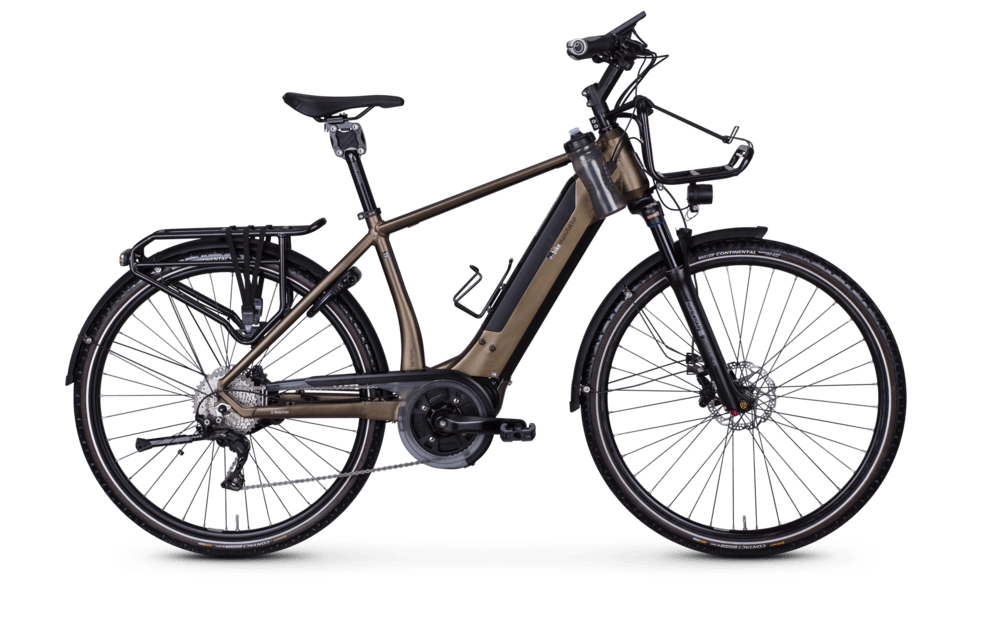

Our e-bike 19ZEHN, which is exclusively available as a men's version, has an electrifying combination of top components, a fully integrated frame concept designed for continuous use, and an exceptionally aesthetic design.

The e-bikes in the Expedition series offer maximum travel and everyday comfort. With the powerful Continental 48 Volt eBike system, a battery with 600 Wh and the sporty basic concept based on the tried and tested XT component group, the 19ZEHN is the guarantee for a long-term e-bike friendship.



Also with Connect!

For an increased protection against theft, you can buy this e-bike at an additional charge of 149,- euros and get it with Connect – the clever GPS-based anti-theft device which allows you to know exactly where your e-bike is at all times.

If you want to use Connect, this should be taken into consideration at the time of purchase. For security reasons, the Connect module is permanently mounted to the e-bike, so it cannot be installed at a later time.

Everything you need to know about Connect can be found here.

Frame size Diamant 28": 50, 55, 60 cm
Drive Unit Continental Prime, 48 V mid motor, 250 Watt
Display Continental Display incl. Bluetooth
Akku Continental Framebattery integrated, 600 Wh, 48 Volt, 12.5 Ah, down tube
max load 170 kg
Frame Aluminium 6061, Continental-Interface
Headset Acros AZX-212 tapered
Fork Suntour springfork, Mobie45 LOR DS 80 mm
Rear derailleur Shimano Deore XT
Front derailleur N.V.
Bremse Shimano Deore (180/160 mm) disc brake
Headlight Busch&Müller Lumotec IQ-X E, 150 LUX including standinglight
Rear light Busch&Müller Toplight 2C, including standinglight
luggage carrier Aluminium Cargo
Saddle Ergon SFC30
Seat pillar Cane Creek Thudbuster ST with Medium-Elastomer (#5)
Pedal VP-617
Stand Pletscher Comp Flex, rear kickstand
Chain guard Horn Catena A09
Fender SKS, plastic
Wight 26,4 kg
Handlebar stem Humpert Ergotec, High Piranha, 31,8 mm, safety level 6
Handlebar Humpert Ergotec Ladytown, safety level 6
Handle Herrmans DD37 with clampclamp
gearshift lever Shimano Deore XT
Break lever Shimano Deore, 3-Finger brake lever
Tyres Continental Contact Travel, 50-622, reflex
Product data sheet
Display – e-bike manufaktur

Display - everything in view

Lightweight and compact displays combine perfect legibility with ergonomic and intuitive operation. In addition to the display for the support level or charge status of the battery, the display offers numerous functions of a bicycle computer as well as a USB and Bluetooth interface. The clever automatic lighting mode is controlled by an integrated light sensor.

Dopouts – e-bike manufaktur

DROPOUTS WITH SOPHISTICATED FUNCTION AND HARMONIOUS APPEARANCE

The innovative dropout of our e-bikes offers an integrated mounting for a rear stand. In this way, the support can be installed quickly and easily. In addition, the multi-function drop-out end is equipped with an opening for the gate belt. This means it can be changed in no time at all. Thanks to its tidy appearance, the drop-out is a perfect match for the frame design.
