17ZEHN
Model 17ZEHN

Expedition E-Bikes & Pedelecs of the e-bike manufaktur:

For people with big goals.

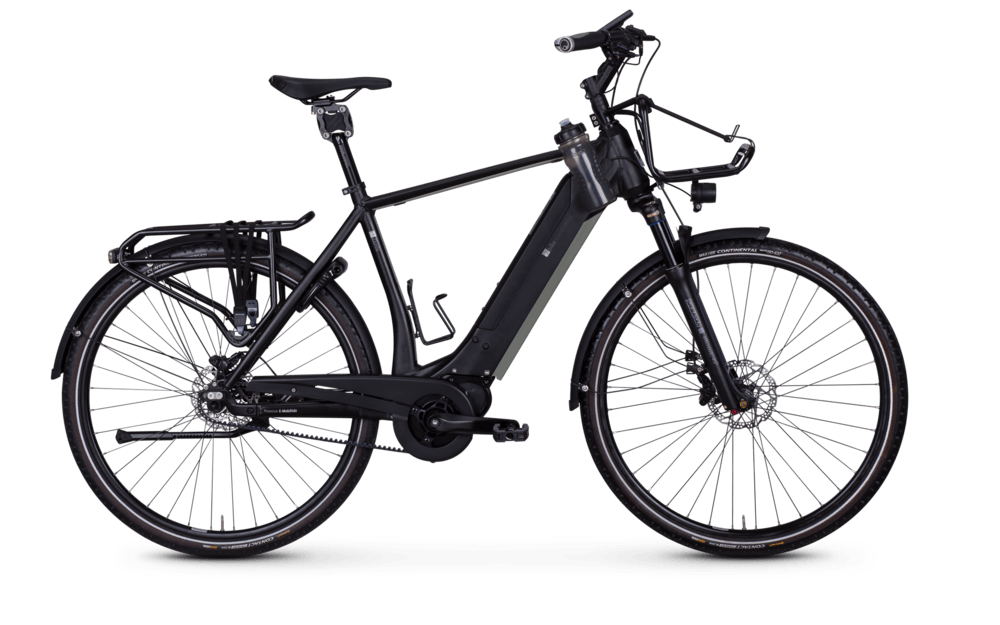

The 17ZEHN proves its worth as a sporty travel and trip companion and is the high-end e-bike in our Expedition series. This e-bike is only available with a diamond frame.

With the "48V Revolution", the 17ZEHN EXT has the unique 2-in-1 motor from Continental - motor and planetary gear combined in a compact housing. Choose between the automatic circuit -  continuously adjustable including under load - or manual gearshift using an Ergon button. The system is controlled via a Continental XT display - including numerous bike computer functions and Bluetooth interface. The power of the 48 V eBike system reliably brings a low-maintenance belt drive onto the road. The necessary power is supplied by a fully integrated battery with a capacity of 600 W.

In combination with the fully integrated frame design specially developed for the Continental motor, the 17ZEHN EXT becomes an e-bike for frequent riders with special demands on dynamics, function and design.

More about Continental's e-bike motor can be found here.

Frame size

  • Diamant
    • 28" / cm
    • 28" / 50 cm
    • 28" / 55 cm
    • 28" / 60 cm
Compare »
Frame size Diamant 28": 50, 55, 60 cm
Drive Unit Continental Revolution, 48 V Mittelmotor, 250 Watt
Display Continental Display incl. Bluetooth
Akku Continental Rahmenakku vollintegriert, 600 Wh, 48 Volt, 12.5 Ah, Unterrohr
max load 170 kg
Frame Aluminium 6061, Continental-Interface
Headset Acros AZX-212 tapered
Fork Suntour Federgabel, Mobie45 LOR DS 80 mm
Rear derailleur ---
Bremse Shimano Deore (180/160 mm) Scheibenbremse
Headlight Busch&Müller Lumotec IQ-X E, 150 LUX mit Standlicht
Rear light Busch&Müller Toplight 2C, mit Standlicht
luggage carrier Aluminium Cargo
Saddle Ergon SFC30
Seat pillar Cane Creek Thudbuster ST mit Medium-Elastomer (#5)
Pedal VP-617
Stand Pletscher Comp Flex, Hinterbauständer
Chain guard Horn Catena 14e
Fender SKS, Kunststoff, Aluminium
Wight 27,4 kg
Handlebar stem Humpert Ergotec, High Piranha, 31,8 mm, safety level 6
Handlebar Humpert Ergotec Ladytown, safety level 6
Handle Herrmans DD37 mit Schraubklemmung
gearshift lever Continental Revolution
Break lever Shimano Deore, 3-Finger Bremshebel
Tyres Continental Contact Travel 50-622, reflex
Produktdatenblatt (PDF)
Gates Riemen – E-Bike Manufaktur

GATES BELT DRIVES

We have fitted some of our e-bikes with Gates' tried-and-trusted belt drive. As a result, complex lubrication and cleaning of chain and gears is now a thing of the past. This carbon-reinforced alternative to the chain is robust and requires little maintenance. In addition, the lightweight system has an impressively long service life. The lock washers also benefit from this solution: they are placed under less strain than with a chain drive.

Display – E-Bike Manufaktur

Display - everything in view

Lightweight and compact displays combine perfect legibility with ergonomic and intuitive operation. In addition to the display for the support level or charge status of the battery, the display offers numerous functions of a bicycle computer as well as a USB and Bluetooth interface. The clever automatic lighting mode is controlled by an integrated light sensor.

Ausfallende – e-bike manufaktur

DROPOUTS WITH SOPHISTICATED FUNCTION AND HARMONIOUS APPEARANCE

The innovative dropout of our e-bikes offers an integrated mounting for a rear stand. In this way, the support can be installed quickly and easily. In addition, the multi-function drop-out end is equipped with an opening for the gate belt. This means it can be changed in no time at all. Thanks to its tidy appearance, the drop-out is a perfect match for the frame design of the e-bike manufacturer.
