13ZEHN
Model 13ZEHN

Trekking E-Bikes & Pedelecs of the e-bike manufaktur:

The upscale trekking class.

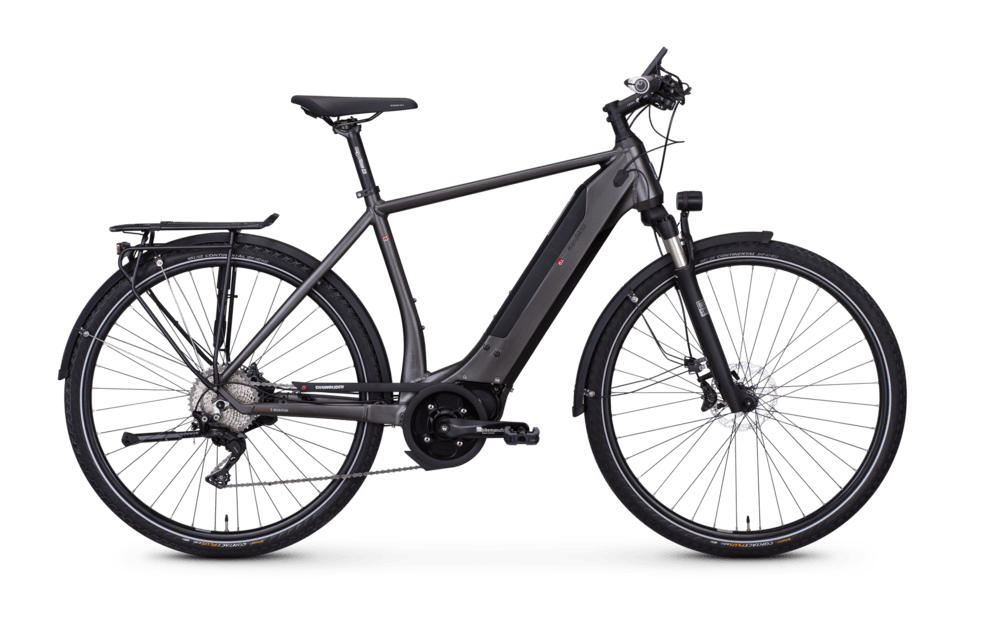

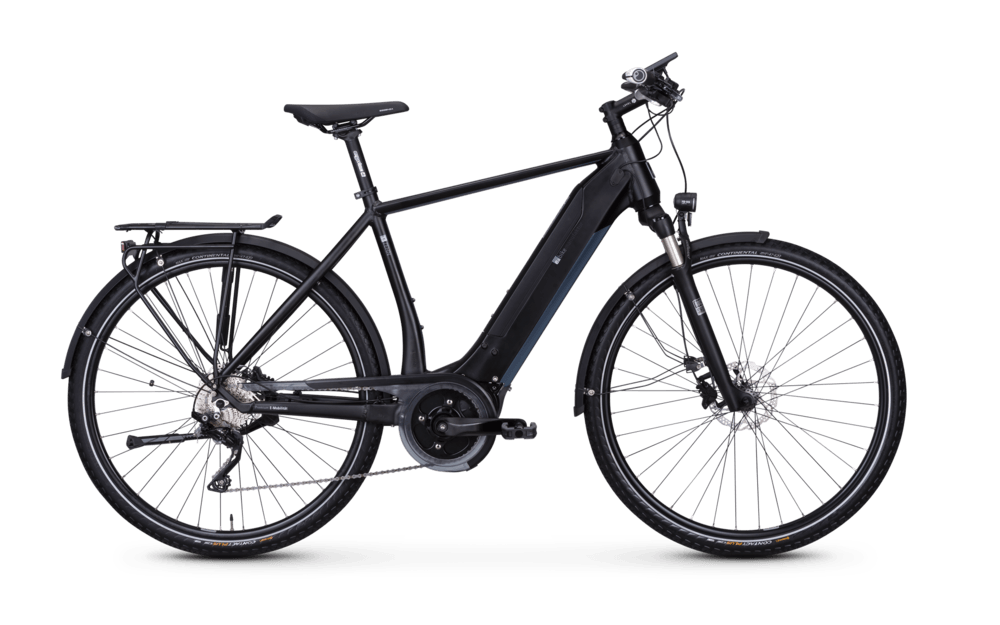

The 13ZEHN e-bike, available in three frame sizes, is our "upper middle class" trekking model. It impresses with a fully integrated frame design as well as with a high degree of sporty functionality and high-quality overall features. The 13ZEHN feels at home in urban surroundings as well as on unpaved roads.

You will be supported on your tours by a Continental eBike system with the premium class 48 volt mid-mounted motor and a 600 W battery. The system meets the highest standards of user-friendliness, ergonomics, and connectivity.

Also with Connect!

For added anti-theft security, the e-bike is also available with our Connect theft deterrent - our clever GPS-based security system that lets you see exactly where your e-bike is at all times.

More about Continental's e-bike motor can be found here.

Frame size

  • Wave
    • 28" / 45 cm
    • 28" / 50 cm
    • 28" / 55 cm
  • Trapez
    • 28" / 45 cm
    • 28" / 50 cm
    • 28" / 55 cm
  • Diamant
    • 28" / cm
    • 28" / 50 cm
    • 28" / 55 cm
    • 28" / 60 cm
Compare »
Frame size Diamant 28": 50, 55, 60 cm
Trapez 28": 45, 50, 55 cm
Wave 28": 45, 50, 55 cm
Drive Unit Continental Prime, 48 V Mittelmotor, 250 Watt
Display Continental Display incl. Bluetooth
Akku Continental Rahmenakku vollintegriert, 600 Wh, 48 Volt, 12.5 Ah, Unterrohr
max load 140 kg
Frame Aluminium 6061, Continental-Interface
Headset Acros AZX-212 tapered
Fork RockShox Federgabel, Paragon Gold Solo Air
Rear derailleur Shimano Deore XT
Bremse Shimano BR-MT400 (160 mm) Scheibenbremse
Headlight Busch&Müller Lumotec IQ-XS, 70 LUX mit Standlicht
Rear light Busch&Müller Toplight 2C, mit Standlicht
luggage carrier Racktime Standit strebenlos
Saddle Selle Royal Essenza
Seat pillar Humpert Ergotec Atar
Pedal Marwi SP823
Stand Pletscher Comp Flex, Hinterbauständer
Chain guard Horn Catena A09
Fender SKS, Kunststoff
Wight 24,6 kg
Handlebar stem Level Nine 6°, 31,8 mm
Handlebar Level Nine Riser 31,8 mm
Handle Herrmans DD37 mit Schraubklemmung
gearshift lever Shimano Deore XT
Break lever Shimano Acera, 3-Finger Bremshebel
Tyres Continental Contact Plus, 47-622, reflex
Produktdatenblatt (PDF)
Display – E-Bike Manufaktur

Display - everything in view

Lightweight and compact displays combine perfect legibility with ergonomic and intuitive operation. In addition to the display for the support level or charge status of the battery, the display offers numerous functions of a bicycle computer as well as a USB and Bluetooth interface. The clever automatic lighting mode is controlled by an integrated light sensor.

Ausfallende – e-bike manufaktur

DROPOUTS WITH SOPHISTICATED FUNCTION AND HARMONIOUS APPEARANCE

The innovative dropout of our e-bikes offers an integrated mounting for a rear stand. In this way, the support can be installed quickly and easily. In addition, the multi-function drop-out end is equipped with an opening for the gate belt. This means it can be changed in no time at all. Thanks to its tidy appearance, the drop-out is a perfect match for the frame design of the e-bike manufacturer.

Harmonisch integriert – e-bike manufaktur

HARMONICALLY INTEGRATED -
EVEN IN OUR WAVE FRAME

Alongside technology and quality, design is also a key factor in the perfect e-bike! The new 48V e-bike system from our partner Continental ensures a harmonious look as the battery is included within the frame. We have even been able to fully integrate the battery into our Wave frame. A new type of frame construction combined with a low centre of gravity promises optimum stability and ride comfort!
