11LF
Model 11LF

Trekking E-Bikes & Pedelecs of the e-bike manufaktur:

Trekking e-bike for daily use.

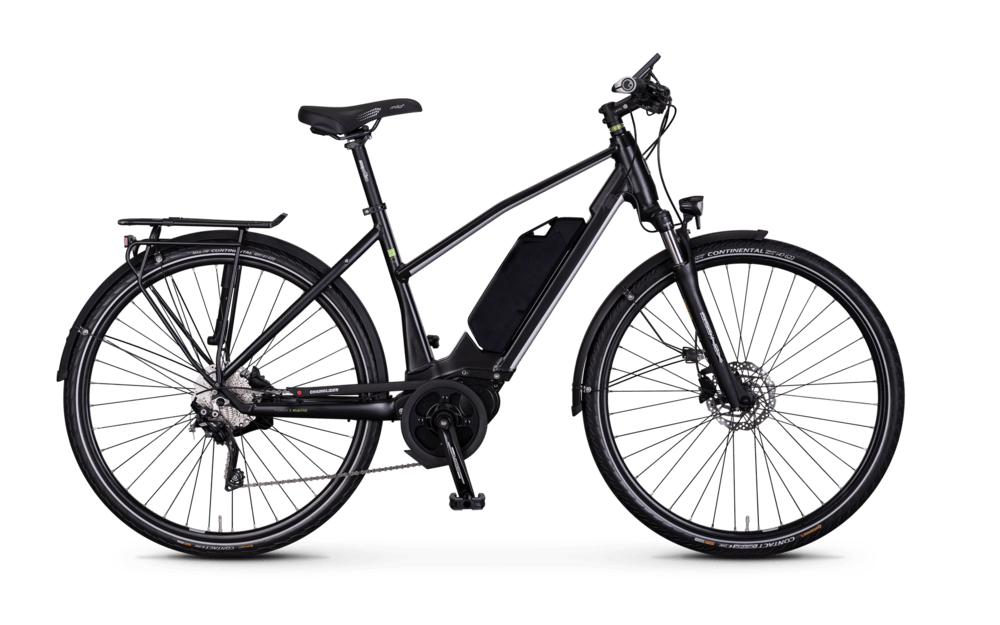

Whether on the asphalt or on unpaved roads - the Trekking e-bike 11LF is designed for daily use and is available in three frame sizes, offering a semi-integrated frame design with high everyday comfort and sporty functionality.

Shimano's tried-and-tested XT chain shifter, which has proven itself over many years, works perfectly with the innovative 48 Volt middle engine of the Continental eBike system. The Continental drive of the 11LF has three harmonically tuned support stages powered by a 600W battery.

More about Continental's e-bike motor can be found here.

Frame size

  • Wave
    • 28" / 45 cm
    • 28" / 50 cm
    • 28" / 55 cm
  • Trapez
    • 28" / 45 cm
    • 28" / 50 cm
    • 28" / 55 cm
  • Diamant
    • 28" / 50 cm
    • 28" / 55 cm
    • 28" / 60 cm
Compare »
Frame size Diamant 28": 50, 55, 60 cm
Trapez 28": 45, 50, 55 cm
Wave 28": 45, 50, 55 cm
Drive Unit Continental Prime, 48 V Mittelmotor, 250 Watt
Display Continental Display incl. Bluetooth
Akku Continental Rahmenakku semi-integriert, 500 Wh, 48 Volt, 10.4 Ah, Unterrohr
max load 140 kg
Frame Aluminium 6061, Continental-Interface
Headset Chin Haur, tapered 1 1/8“ – 1,5“ semi-integriert
Fork Suntour Federgabel, NEX HLO
Rear derailleur Shimano Deore XT
Bremse Shimano Shimano BR-MT200 (160 mm) Scheibenbremse
Headlight Busch&Müller Lumotec Avy LED, 40 LUX mit Standlicht
Rear light Busch&Müller integriert in Gepäckträger, LED, mit Standlicht
luggage carrier Racktime Shine Evo Tour, strebenlos mit Federklappe
Saddle Selle Royal Milo Plus
Seat pillar Humpert Atar, patent, Aluminium, 31,6 mm, 300 mm
Pedal Marwi SP-823 Aluminium
Stand Pletscher Comp Flex, Hinterbauständer
Chain guard Hebie Chainglider Open
Fender SKS, Kunststoff
Wight 24,1 kg
Handlebar stem Levelnine, Aluminium, 1 1/8", a-head, starr, 31,8 mm, 4-fach Klemmung
Handlebar Levelnine, Trekking, Aluminium, 9°, 660 mm
Handle Ergon GP1
gearshift lever Shimano Deore
Break lever Shimano, Altus, 3-Finger Bremshebel
Tyres Continental Contact, 47-622, reflex
Produktdatenblatt (PDF)
Display – E-Bike Manufaktur

Display - everything in view

Lightweight and compact displays combine perfect legibility with ergonomic and intuitive operation. In addition to the display for the support level or charge status of the battery, the display offers numerous functions of a bicycle computer as well as a USB and Bluetooth interface. The clever automatic lighting mode is controlled by an integrated light sensor.

Ausfallende – e-bike manufaktur

DROPOUTS WITH SOPHISTICATED FUNCTION AND HARMONIOUS APPEARANCE

The innovative dropout of our e-bikes offers an integrated mounting for a rear stand. In this way, the support can be installed quickly and easily. In addition, the multi-function drop-out end is equipped with an opening for the gate belt. This means it can be changed in no time at all. Thanks to its tidy appearance, the drop-out is a perfect match for the frame design of the e-bike manufacturer.
