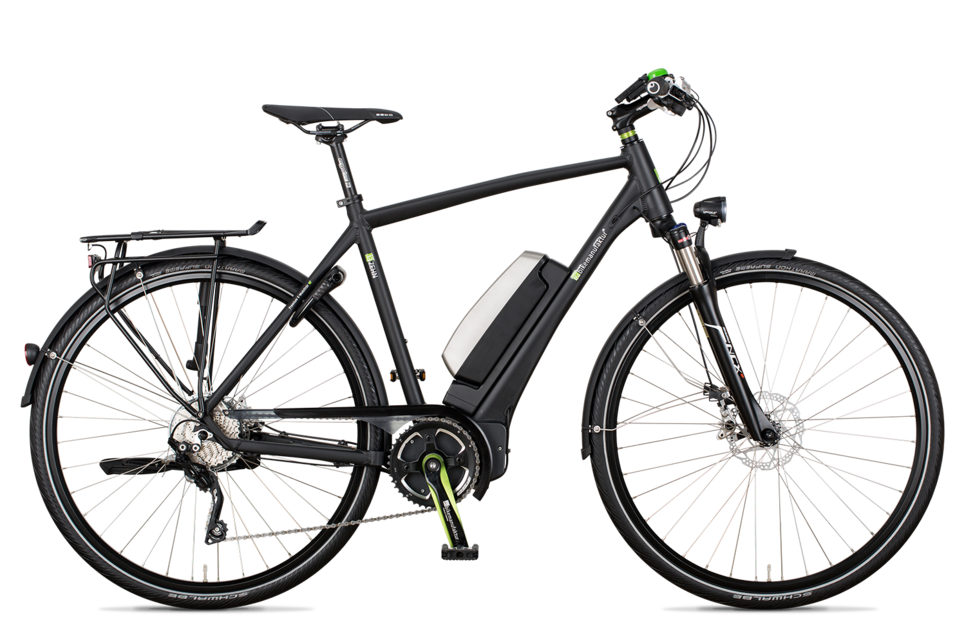

13ZEHN
Model 13ZEHN

E-Bikes & Pedelecs of the e-bike manufaktur:

Uncompromising and ergonomic.


The 13ZEHN is a sporty e-tourer with an electrifying combination of high-end components and a highly durable frame. Ideally suited for everyday use, the powerful Brose e-bike motor covers distances of up to 180 km while the sporty design using tried and tested XT component groups ensures that this faithful companion will serve you well for many years.

Frame size Gents: 28" 50, 55, 60 cm
Frame Aluminium 6061, Brose-Interface, superlight
Headset Ritchey Comp Logic Zero, 11/8" - 1,5", semi-cadridge
Fork Suntour NCX-E LO Lite Air, tapered
Rear derailleur Shimano XT RD-M781, 10-times
Front derailleur -
Bremse Shimano Deore BR-M615 hydraulice disc brake
Headlight B&M Lumotec Avy, LED 30 LUX with parking light
Rear light B&M Line LED with parking light
luggage carrier Racktime Shine Evo Tour with IMM-System with spring flap
Saddle Selle Royal Seta Performa, black
Seat pillar Humpert Ergotec Atar Aluminium, patent, black
Pedal VP-191, Aluminium rubber claw
Stand Pletscher Zoom rear stand, adjustable, Aluminium
Chain guard Horn Catena Brose A09, adjustable length, black
Fender SKS Fender with stays with edge protection
others SKS Rookie, Abus Pro Tectic 4960 fram lock, max. weight 140 kg
Wight 22,9 kg with Battery
Handlebar stem Humpert Ergotec Crab2, Alu, a-head, 7°, 31,8 mm clamping
Handlebar Humpert Ergotec Riser, Aluminium, 31,8 mm
Handle Ergon GA30, black, external clamping
gearshift lever Shimano XT SL-M780
Break lever Shimano Deore BR-M615
Tyres Schwalbe Marathon Supreme 40-622, reflex
Rim Exal DC19, Aluminium hollow section rim, double eyed
Spoke Niro 2 mm
Front hub Shimano XT, 36 hole
Back hub Shimano XT 10-times, 36 hole
Sprocket Shimano Deore 10-times, 11-34 tooth
Chain Shimano HG 54
Colour ebony matt
Inside bearing -
Crankset Lasco Aluminium 170 mm
Ladynsmission 44 tooth: 11-34 tooth
